Description: OpenSS7 Online Papers

A PDF version of this document is available here.

STREAMS-based vs. Legacy Pipe Performance Comparison

Experiment Test Results for Linux

Brian F. G. Bidulock1

OpenSS7 Corporation

July 26, 20082

Abstract:

With the objective of contrasting performance between STREAMS and legacy approaches to system facilities, a comparison is made between the tested performance of the Linux legacy pipe implementation and the STREAMS-based pipe implementation using the Linux Fast-STREAMS package (LfS).

Background

Pipes have a rich history in the UNIX operating system. Present on early Bell Laboratories UNIX Versions, pipes found their way into both BSD and System V releases. Finally, in 4.4BSD pipes are implemented with Sockets and in System V Release 4 pipes are implemented with STREAMS.

STREAMS

STREAMS is a facility first presented in a paper by Dennis M. Ritchie in 1984 (Rit84), originally implemented on 4.1BSD and later part of Bell Laboratories Eighth and Ninth Edition UNIX, incorporated into UNIX System V Release 3 and enhanced in UNIX System V Release 4 and further in UNIX System V Release 4.2. STREAMS was used in SVR4 for terminal input-output, pseudo-terminals, pipes, named pipes (FIFOs), interprocess communication and networking. Since its release in System V Release 3, STREAMS has been implemented across a wide range of UNIX, UNIX-like and UNIX-based systems, making its implementation and use an ipso facto standard.

STREAMS is a facility that allows for a reconfigurable full duplex communications path, Stream, between a user process and a driver in the kernel. Kernel protocol modules can be pushed onto and popped from the Stream between the user process and driver. The Stream can be reconfigured in this way by a user process. The user process, neighbouring protocol modules and the driver communicate with each other using a message passing scheme. This permits a loose coupling between protocol modules, drivers and user processes, allowing a third-party and loadable kernel module approach to be taken toward the provisioning of protocol modules on platforms supporting STREAMS.

On UNIX System V Release 4.2, STREAMS was used for terminal input-output, pipes, FIFOs (named pipes), and network communications. Modern UNIX, UNIX-like and UNIX-based systems providing STREAMS normally support some degree of network communications using STREAMS; however, many do not support STREAMS-based pipe and FIFOs3 or terminal input-output4 directly or without reconfiguration.

Pipe Implementation

Traditionally there have been two approaches to implementation of pipes and named pipes (FIFOs):

Legacy Approach to Pipes.

Under the 4.1BSD or SVR3 approach, pipes were implemented using anonymous FIFOs. That is, when a pipe was opened, a new instance of a FIFO was obtained, but which was not attached to a node in the file system and which had two file descriptors: one open for writing and the other opened for reading. As FIFOs are a fundamentally unidirectional concept, legacy pipes can only pass data in one direction. Also, legacy pipes do not support the concept of record boundaries and only support a byte stream. Each end of the pipe uses a the legacy interface and they do not provide any of the advanced capabilities provided by STREAMS.

SVR4 Approach to Pipes.

Under the SVR4 approach, both pipes and FIFOs are implemented using STREAMS (GC94). When a pipe is opened, a new instance of a STREAMS-based pipe is obtained, but which is attached to a non-accessible node in the fifofs file system instead of the normal STREAMS specfs file system. Although one file descriptor was opened for read and the other for write, with a STREAMS-based pipe it is possible to reopen both for reading and writing.

Figure 1: STREAMS-Based Pipes
Image streamspipe

The STREAMS-based pipes provide the same rich set of facilities that are also available for other STREAMS devices such as pseudo-terminals and network interfaces. As a result, STREAMS-based pipes provide a number of capabilities that are not provided by legacy pipes:

Full Duplex.

STREAMS-based pipes are full duplex pipes. That is, each end of the pipe can be used for reading and writing. To accomplish the same effect with legacy pipes requires that two legacy pipes be opened.

Pushable Modules.

STREAMS-based pipes can have STREAMS modules pushed an popped from either end of the pipe, just as any other STREAMS device.

File Attachment.

STREAMS-based pipes can have either end (or both ends) attached to a node in the file system using fattach(3) (Ste97).

File Descriptor Passing.

STREAMS-based pipes can pass file descriptors across the pipe using the I_SENDFD and I_RECVFD input-output controls (Ste97).

Record Boundary Preservation.

STREAMS-based pipes can preserve record boundaries and can pass messages atomically using the getmsg(2) and putmsg(2) system calls.

Prioritization of Messages.

STREAMS-based pipes can pass messages in priority bands using the getpmsg(2) and putpmsg(2) system calls.

BSD Approach to Pipes.

As of 4.2BSD, with the introduction of Sockets, pipes were implemented using the networking subsystem (UNIX domain sockets) for what was cited as "performance reasons" (MBKQ97). The pipe(2) library call effectively calls sockpair(3) and obtains a pair of connected sockets in the UNIX domain as illustrated in Figure 2.

Figure 2: 4.2BSD Pipes
Image socketpipe

Knowing the result of this testing, I can only imagine that the "performance reasons" had to do with the lack of a full flow control mechanism in the legacy file system based pipes.

Linux Approach to Pipes.

Linux adopts the legacy (4.1BSD or SVR3 pre-STREAMS) approach to pipes. Pipes are file system based, and obtain an inode from the pipefs file system as illustrated in Figure 3. Pipes are unnamed FIFOs, unidirectional byte streams, and do not provide any of the capabilities of STREAMS-based pipes or socket pairs in the UNIX domain.5

Figure 3: Linux Legacy Pipes
Image legacypipe

Standardization.

During the POSIX standardization process, pipes and FIFOs were given special treatment to ensure that both the legacy approach to pipes, 4.2BSD approach and the STREAMS-based approach to pipes were compatible. POSIX has standardized the programmatic interface to pipes. STREAMS-based pipes have been POSIX compliant for many years and were POSIX compliant in the SVR4.2 release. The STREAMS-based pipes provided by the Linux Fast-STREAMS package provides POSIX compliant STREAMS-based pipes.

As a result, any application utilizing a legacy Linux pipe in a POSIX compliant manner will also be compatible with STREAMS-based pipes.6

Linux Fast-STREAMS

The first STREAMS package for Linux that provided SVR4 STREAMS capabilities was the Linux STREAMS (LiS) package originally available from GCOM. This package exhibited incompatibilities with SVR 4.2 STREAMS and other STREAMS implementations, was buggy and performed very poorly on Linux. These difficulties prompted the OpenSS7 Project (SS7) to implement an SVR 4.2 STREAMS package from scratch, with the objective of production quality and high-performance, named Linux Fast-STREAMS.

The OpenSS7 Project (SS7) also maintains public and internal versions of the LiS package. The last public release was LiS-2.18.3; the current internal release version is LiS-2.18.6. The current production public release of Linux Fast-STREAMS is streams-0.9.3.

Objective

The objective of the current study is to determine whether, for the Linux operating system, the newer STREAMS-based pipe approach is (from the perspective of performance) a viable replacement for the legacy 4.1BSD/SVR3-style pipes provided by Linux. As a side objective, a comparison is also made to STREAMS-based pipes implemented on the deprecated LiS (Linux STREAMS) package. This comparison will demonstrate one reason why Linux Fast-STREAMS was written in the first place.

Misconceptions

When developing STREAMS, the authors oft times found that there were a number of preconceptions from Linux advocates about both STREAMS and STREAMS-based pipes, as follows:

  • STREAMS is slow.

  • STREAMS is more flexible, but less efficient (LML).

  • STREAMS performs poorly on uniprocessor and even poorer on SMP.

  • STREAMS-based pipes are slow.

  • STREAMS-based pipes are unnecessarily complex and cumbersome.

For example, the Linux kernel mailing list has this to say about STREAMS:

(REG)
STREAMS allow you to "push" filters onto a network stack. The idea is that you can have a very primitive network stream of data, and then "push" a filter ("module") that implements TCP/IP or whatever on top of that. Conceptually, this is very nice, as it allows clean separation of your protocol layers. Unfortunately, implementing STREAMS poses many performance problems. Some Unix STREAMS based server telnet implementations even ran the data up to user space and back down again to a pseudo-tty driver, which is very inefficient.

STREAMS will never be available in the standard Linux kernel, it will remain a separate implementation with some add-on kernel support (that come with the STREAMS package). Linus and his networking gurus are unanimous in their decision to keep STREAMS out of the kernel. They have stated several times on the kernel list when this topic comes up that even optional support will not be included.

(REW, quoting Larry McVoy)
"It's too bad, I can see why some people think they are cool, but the performance cost - both on uniprocessors and even more so on SMP boxes - is way too high for STREAMS to ever get added to the Linux kernel."

Please stop asking for them, we have agreement amoungst the head guy, the networking guys, and the fringe folks like myself that they aren't going in.

(REG, quoting Dave Grothe, the STREAMS guy)
STREAMS is a good framework for implementing complex and/or deep protocol stacks having nothing to do with TCP/IP, such as SNA. It trades some efficiency for flexibility. You may find the Linux STREAMS package (LiS) to be quite useful if you need to port protocol drivers from Solaris or UnixWare, as Caldera did.

The Linux STREAMS (LiS) package is available for download if you want to use STREAMS for Linux. The following site also contains a dissenting view, which supports STREAMS.

It is possible that the proponents of these statements have worked in the past with an improper or under-performing STREAMS implementation (such as LiS); however, the current study aims to prove that none of these statements are correct for the STREAMS-based pipes provided by the high-performance Linux Fast-STREAMS.

Description

The three implementations tested vary in their implementation details. These implementation details are described below.

Linux Pipes

Linux pipes are implemented using a file-system approach similar to that of 4.1BSD, or that of SVR3 and SVR2 releases, or their common Bell Laboratories predecessors, as illustrated in Figure 3. It should be noted that 4.4BSD (and releases after 4.2BSD) implements pipes using Sockets and the networking subsystem (MBKQ97). Also, note that SVR4 implemented pipes using STREAMS. As such, the Linux pipe implementation is both archaic and deprecated.

Write side processing.

In response to a write(2) system call, message bytes are copied from user space to kernel directly into a preallocated buffer. The tail pointer is pushed on the buffer. If the buffer is full at the time of the system call, the calling process blocks, or the system call fails and returns an error number (EAGAIN or EWOULDBLOCK).

Read side processing.

In response to a read(2) system call, message bytes are copied from the preallocated buffer to user space. The head pointer is pushed on the buffer. If the buffer is empty at the time of the system call, the calling process blocks, or the system call fails and returns an error number (EAGAIN or EWOULDBLOCK).

Buffering.

If a writer goes to write and there is no more room left in the buffer for the requested write, the writer blocks or the system call is failed (EAGAIN). If a reader goes to read and there are no bytes in the buffer, the reader blocks or the system call is failed (EAGAIN). If there are fewer bytes in the buffer than requested by the read operation, the available bytes are returned. No queueing or flow control is performed.

Scheduling.

When a writer is blocked or polling for write, the writer is awoken once there is room to write at least 1 byte into the buffer. When a reader is blocked or polling for read, the reader is awoken once there is at least 1 byte in the buffer.

STREAMS-based Pipes

STREAMS-based pipes are implemented using a specialized STREAMS driver that connects the read and write queues of two Stream heads in a twisted pair configuration as illustrated in Figure 1. Aside from a few specialized settings particular to pipes, each Stream head acts in the same fashion as the Stream head for any other STREAMS device or pseudo-device.

Write side processing.

In response to a write(2) system call, message bytes are copied from user space into allocated message blocks. Message blocks are passed downstream to the next module (read Stream head) in the Stream. If flow control is in effect on the write queue at the time of the system call, the calling process blocks, or the system call fails and returns an error number (EAGAIN). Also, STREAMS has a write message coalescing feature that allows message blocks to be held temporarily on the write queue awaiting execution of the write queue service procedure (invoked by the STREAMS scheduler) or the occurrence of another write operation.

Read side processing.

In response to a read(2) system call, message blocks are removed from the read queue and message bytes copied from kernel to user space. If there are no message blocks in the read queue at the time of the system call, the calling process blocks, or the system call fails and returns and error number (EAGAIN). Also, STREAMS has a read notification feature that causes a read notification message (M_READ) containing the requested number of bytes to be issued and passed downstream before blocking. STREAMS has an additional read-fill mode feature which causes the read side to attempt to satisfy the entire read request before returning to the user.

Buffering.

If a writer goes to write and the write queue is flow controlled, the writer blocks or the system call is failed (EAGAIN). If a reader goes to read and there are no message blocks available, the reader blocks or the system call is failed (EAGAIN). If there are fewer bytes available in message blocks on the read queue than requested by the read operation, the available bytes are returned. Normal STREAMS queueing and flow control is performed as message blocks are passed along the write side or removed from the read queue.

Scheduling.

When a write is blocked or polling for write, the writer is awoken once flow control subsides on the write side. Flow control subsides when the downstream module's queue on the write side falls below its low water mark, the Stream is back-enabled, and the write queue service procedure runs. When a reader is blocked or polling for read, the reader is awoken once the read queue service procedure runs. The read queue service procedure is scheduled when the first message block is placed on the read queue after an attempt to remove a message block from the queue failed. The service procedure runs when the STREAMS scheduler runs.

Method

To test the performance of STREAMS-based pipes, the Linux Fast-STREAMS package was used (LfS). The Linux Fast-STREAMS package builds and install Linux loadable kernel modules and includes the perftest program used for testing. For comparison, the LiS package (LiS) was used for comparison.

Test Program

To test the maximum throughput performance of both legacy pipes and STREAMS-based pipes, a test program was written, called perftest. The perftest program is part of the Linux Fast-STREAMS distribution (LfS). The test program performs the following actions:

  1. Opens either a legacy pipe or a STREAMS-based pipe.

  2. Forks two child processes: a writer child process and a reader child process.

  3. The writer child process closes the reading end of the pipe.

  4. The writer child process starts an interval timer.

  5. The writer child process begins writing data to the pipe end with the write(2) system call.

  6. As the writer child process writes to the pipe end, it tallies the amount of data written. When the interval timer expires, the tally is output and the interval timer restarted.

  7. The reader child process closes the writing end of the pipe.

  8. The reader child process starts an interval timer.

  9. The reader child process begins reading data from the pipe end with the read(2) system call.

  10. As the reader child process reads from the pipe end, it tallies the amount of data written. When the interval timer expires, the tally is output and the interval timer restarted.

The test program thus simulates a typical use of pipes in a Linux system. The perftest_script performance testing script was used to obtain repeatable results (see Appendix A).

Distrbutions Tested

To remove the dependence of test results on a particular Linux kernel or machine, various Linux distributions were used for testing. The distributions tested are as follows:

Distribution Kernel
RedHat 7.2 2.4.20-28.7
CentOS 4 2.6.9-5.0.3.EL
CentOS 5 2.6.18-8-el5
SuSE 10.0 OSS 2.6.13-15-default
Ubuntu 6.10 2.6.17-11-generic
Ubuntu 7.04 2.6.20-15-generic
Fedora Core 6 2.6.20-1.2933.fc6

Test Machines

To remove the dependence of test results on a particular machine, various machines were used for testing as follows:

Hostname Processor Memory Architecture
porky 2.57GHz PIV 1Gb (333MHz) i686 UP
pumbah 2.57GHz PIV 1Gb (333MHz) i686 UP
daisy 3.0GHz i630 HT 1Gb (400MHz) x86_64 SMP
mspiggy 1.7GHz PIV 1Gb (333MHz) i686 UP

Results

The results for the various distributions and machines is tabulated in Appendix B. The data is tabulated as follows:

Performance.

Performance is charted by graphing the number of writes per second against the logarithm of the write size.

Delay.

Delay is charted by graphing the number of second per write against the write size. The delay can be modelled as a fixed write overhead per write operation and a fixed overhead per byte written. This model results in a linear graph with the intercept at 1 byte per write representing the fixed per-write overhead, and the slope of the line representing the per-byte cost. As all implementations use the same primary mechanisms for copying bytes to and from user space, it is expected that the slope of each graph will be similar and that the intercept will reflect most implementation differences.

Throughput.

Throughput is charted by graphing the logarithm of the product of the number of writes per second and the message size against the logarithm of the message size. It is expected that these graphs will exhibit strong log-log-linear (power function) characteristics. Any curvature in these graphs represent throughput saturation.

Improvement.

Improvement is charted by graphing the quotient of the writes per second of the implementation and the writes per second of the Linux legacy pipe implementation as a percentage against the write size. Values over 0% represent an improvement over Linux legacy pipes, whereas values under 0% represent the lack of an improvement.

The results are organized in the section that follow in order of the machine tested.

Porky

Porky is a 2.57GHz Pentium IV (i686) uniprocessor machine with 1Gb of memory. Linux distributions tested on this machine are as follows:

Distribution Kernel
Fedora Core 6 2.6.20-1.2933.fc6
CentOS 4 2.6.9-5.0.3.EL
SuSE 10.0 OSS 2.6.13-15-default
Ubuntu 6.10 2.6.17-11-generic
Ubuntu 7.04 2.6.20-15-generic

Fedora Core 6

Fedora Core 6 is the most recent full release Fedora distribution. This distribution sports a 2.6.20-1.2933.fc6 kernel with the latest patches. This is the x86 distribution with recent updates.

Figure 4: FC6 on Porky Performance
Image perftest_fc6_perf

Figure 5: FC6 on Porky Delay
Image perftest_fc6_delay

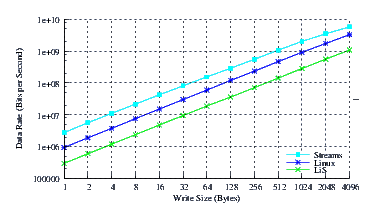

Figure 6: FC6 on Porky Throughput
Image perftest_fc6_thrput

Figure 7: FC6 on Porky Comparison
Image perftest_fc6_comp

Performance.

Figure 4 illustrates the performance of LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be see from Figure 4, the performance of LiS is dismal across the entire range of write sizes. The performance of Linux Fast-STREAMS STREAMS-based pipes, on the other hand, is superior across the entire range of write sizes. Performance of Linux Fast-STREAMS is a full order of magnitude better than LiS.

Delay.

Figure 5 illustrates the average write delay for LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. The slope of all three curves is comparable and about the same. This indicates that each implementation is only slightly dependent upon the size of the message and each implementation has a low per-byte processing overhead. This is as expected as pipes primarily copy data from user space to the kernel just to copy it back to user space on the other end. Note that the intercepts, on the other hand, differ to a significant extent. Linux Fast-STREAMS STREAMS-based pipes have by far the lowest per-write overhead (about half that of the Linux legacy pipes, and a sixth of LiS pipes).

Throughput.

Figure 6 illustrates the throughput experienced by LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be seen from Figure 6, all implementations exhibit strong power function characteristics, indicating structure and robustness for each implementation (regardless of performance).

Improvement.

Figure 7 illustrates the improvement over Linux legacy pipes of Linux Fast-STREAMS STREAMS-based pipes. The improvement of Linux Fast-STREAMS over Linux legacy pipes is marked: improvements range from a significant 75% increase in performance at large write sizes, to a staggering 200% increase in performance at lower write sizes.

CentOS 4.0

CentOS 4.0 is a clone of the RedHat Enterprise 4 distribution. This is the x86 version of the distribution. The distribution sports a 2.6.9-5.0.3.EL kernel.

Figure 8: CentOS 4.0 on Porky Performance
Image perftest_centos_perf

Figure 9: CentOS 4.0 on Porky Delay
Image perftest_centos_delay

Figure 10: CentOS 4.0 on Porky Throughput
Image perftest_centos_thrput

Figure 11: CentOS 4.0 on Porky Comparison
Image perftest_centos_comp

Performance.

Figure 8 illustrates the performance of LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be see from Figure 8, the performance of LiS is dismal across the entire range of write sizes. The performance of Linux Fast-STREAMS STREAMS-based pipes, on the other hand, is superior across the entire range of write sizes. Performance of Linux Fast-STREAMS is a full order of magnitude better than LiS.

Delay.

Figure 9 illustrates the average write delay for LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. The slope of all three curves is comparable and about the same. This indicates that each implementation is only slightly dependent upon the size of the message and each implementation has a low per-byte processing overhead. This is as expected as pipes primarily copy data from user space to the kernel just to copy it back to user space on the other end. Note that the intercepts, on the other hand, differ to a significant extent. Linux Fast-STREAMS STREAMS-based pipes have by far the lowest per-write overhead (about half that of the Linux legacy pipes, and a sixth of LiS pipes).

Throughput.

Figure 10 illustrates the throughput experienced by LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be seen from Figure 10, all implementations exhibit strong power function characteristics, indicating structure and robustness for each implementation (regardless of performance).

Improvement.

Figure 11 illustrates the improvement over Linux legacy pipes of Linux Fast-STREAMS STREAMS-based pipes. The improvement of Linux Fast-STREAMS over Linux legacy pipes is marked: improvements range from a significant 100% increase in performance at large write sizes, to a staggering 275% increase in performance at lower write sizes.

SuSE 10.0 OSS

SuSE 10.0 OSS is the public release version of the SuSE/Novell distribution. There have been two releases subsequent to this one: the 10.1 and recent 10.2 releases. The SuSE 10 release sports a 2.6.13 kernel and the 2.6.13-15-default kernel was the tested kernel.

Figure 12: SuSE 10.0 OSS on Porky Performance
Image perftest_suse_perf

Figure 13: SuSE 10.0 OSS on Porky Delay
Image perftest_suse_delay

Figure 14: SuSE 10.0 OSS on Porky Throughput
Image perftest_suse_thrput

Figure 15: SuSE 10.0 OSS on Porky Comparison
Image perftest_suse_comp

Performance.

Figure 12 illustrates the performance of LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be see from Figure 12, the performance of LiS is dismal across the entire range of write sizes. The performance of Linux Fast-STREAMS STREAMS-based pipes, on the other hand, is superior across the entire range of write sizes. Performance of Linux Fast-STREAMS is a full order of magnitude better than LiS.

Delay.

Figure 13 illustrates the average write delay for LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. The slope of the delay curves are similar for all implementations, as expected. The zero intercept of Linux Fast-STREAMS is, however, far superior to that of legacy Linux and a full order of magnitude better than the under-performing LiS.

Throughput.

Figure 14 illustrates the throughput experienced by LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be seen from Figure 14, all implementations exhibit strong power function characteristics, indicating structure and robustness for each implementation. The Linux Fast-STREAMS curve exhibits a downward concave characteristic at large message sizes indicating that the memory bus saturates at about 10Gbps.

Improvement.

Figure 15 illustrates the improvement over Linux legacy pipes of Linux Fast-STREAMS STREAMS-based pipes. The improvement of Linux Fast-STREAMS over Linux legacy pipes is significant: improvements range from a 100% increase in performance at large write sizes, to a 475% increase in performance at lower write sizes.

Ubuntu 6.10

Ubuntu 6.10 is the current release of the Ubuntu distribution. The Ubuntu 6.10 release sports a 2.6.15 kernel. The tested distribution had current updates applied.

Figure 16: Ubuntu 6.10 on Porky Performance
Image perftest_ubuntu_perf

Figure 17: Ubuntu 6.10 on Porky Delay
Image perftest_ubuntu_delay

Figure 18: Ubuntu 6.10 on Porky Throughput
Image perftest_ubuntu_thrput

Figure 19: Ubuntu 6.10 on Porky Comparison
Image perftest_ubuntu_comp

Performance.

Figure 20 illustrates the performance of LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be see from Figure 20, the performance of LiS is dismal across the entire range of write sizes. The performance of Linux Fast-STREAMS STREAMS-based pipes, on the other hand, is superior across the entire range of write sizes. Performance of Linux Fast-STREAMS is a full order of magnitude better than LiS.

Delay.

Figure 21 illustrates the average write delay for LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. Again, the slope of the delay curves is similar, but Linux Fast-STREAMS exhibits a greatly reduced intercept indicating superior per-message overheads.

Throughput.

Figure 22 illustrates the throughput experienced by LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be seen from Figure 22, all implementations exhibit strong power function characteristics, indicating structure and robustness for each implementation. Again Linux Fast-STREAMS appears to saturate the memory bus approaching 10Gbps.

Improvement.

Figure 23 illustrates the improvement over Linux legacy pipes of Linux Fast-STREAMS STREAMS-based pipes. The improvement of Linux Fast-STREAMS over Linux legacy pipes is significant: improvements range from a 75% increase in performance at large write sizes, to a 200% increase in performance at lower write sizes.

Ubuntu 7.04

Ubuntu 7.04 is the current release of the Ubuntu distribution. The Ubuntu 7.04 release sports a 2.6.20 kernel. The tested distribution had current updates applied.

Figure 20: Ubuntu 7.04 on Porky Performance
Image perftest_u704_perf

Figure 21: Ubuntu 7.04 on Porky Delay
Image perftest_u704_delay

Figure 22: Ubuntu 7.04 on Porky Throughput
Image perftest_u704_thrput

Figure 23: Ubuntu 7.04 on Porky Comparison
Image perftest_u704_comp

Performance.

Figure 20 illustrates the performance of LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be see from Figure 20, the performance of LiS is dismal across the entire range of write sizes. The performance of Linux Fast-STREAMS STREAMS-based pipes, on the other hand, is superior across the entire range of write sizes. Performance of Linux Fast-STREAMS is a full order of magnitude better than LiS.

Delay.

Figure 21 illustrates the average write delay for LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. Again, the slope of the delay curves is similar, but Linux Fast-STREAMS exhibits a greatly reduced intercept indicating superior per-message overheads.

Throughput.

Figure 22 illustrates the throughput experienced by LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be seen from Figure 22, all implementations exhibit strong power function characteristics, indicating structure and robustness for each implementation. Again Linux Fast-STREAMS appears to saturate the memory bus approaching 10Gbps.

Improvement.

Figure 23 illustrates the improvement over Linux legacy pipes of Linux Fast-STREAMS STREAMS-based pipes. The improvement of Linux Fast-STREAMS over Linux legacy pipes is significant: improvements range from a 75% increase in performance at large write sizes, to a 200% increase in performance at lower write sizes.

Pumbah

Pumbah is a 2.57GHz Pentium IV (i686) uniprocessor machine with 1Gb of memory. This machine differs from Porky in memory type only (Pumbah has somewhat faster memory than Porky.) Linux distributions tested on this machine are as follows:

Distribution Kernel
RedHat 7.2 2.4.20-28.7


Pumbah is a control machine and is used to rule out differences between recent 2.6 kernels and one of the oldest and most stable 2.4 kernels.

RedHat 7.2

RedHat 7.2 is one of the oldest (and arguably the most stable) glibc2 based releases of the RedHat distribution. This distribution sports a 2.4.20-28.7 kernel. The distribution has all available updates applied.

Figure 24: RH7.2 on Pumbah Performance
Image perftest_rh7_perf

Figure 25: RH7.2 on Pumbah Delay
Image perftest_rh7_delay

Figure 26: RH7.2 on Pumbah Throughput
Image perftest_rh7_thrput

Figure 27: RH7.2 on Pumbah Comparison
Image perftest_rh7_comp

Performance.

Figure 24 illustrates the performance of LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be see from Figure 24, the performance of LiS is dismal across the entire range of write sizes. The performance of Linux Fast-STREAMS STREAMS-based pipes, on the other hand, is superior across the entire range of write sizes. At a write size of one byte, the performance of Linux Fast-STREAMS is an order of magnitude greater than LiS.

Delay.

Figure 25 illustrates the average write delay for LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. The slope of all three graphs is similar, indicating that memory caching and copy to and from user performance on a byte-by-byte basis is similar. The intercepts, on the other hand, are drastically different. LiS per-message overheads are massive. Linux Fast-STREAMS and Linux legacy pipes are far better. STREAMS-based pipes have about one third of the per-message overhead of legacy pipes.

Throughput.

Figure 26 illustrates the throughput experienced by LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be seen from Figure 26, all implementations exhibit strong power function characteristics, indicating structure and robustness for each implementation (despite performance differences). On Pumbah, as was experienced on Porky, Linux Fast-STREAMS is beginning to saturate the memory bus at 10Gbps.

Improvement.

Figure 27 illustrates the improvement over Linux legacy pipes of Linux Fast-STREAMS STREAMS-based pipes. The improvement of Linux Fast-STREAMS over Linux legacy pipes is significant: improvements range from a 75% increase in performance at large write sizes, to a 175% increase in performance at lower write sizes. LiS pipes waddle in at a 75% decrease in performance.

Daisy

Daisy is a 3.0GHz i630 (x86_64) hyper-threaded machine with 1Gb of memory. Linux distributions tested on this machine are as follows:

Distribution Kernel
Fedora Core 6 2.6.20-1.2933.fc6
CentOS 5 2.6.18-8-el5
CentOS 5.2 2.6.18-92.1.6.el5.centos.plus


This machine is used as an SMP control machine. Most of the test were performed on uniprocessor non-hyper-threaded machines. This machine is hyper-threaded and runs full SMP kernels. This machine also supports EMT64 and runs x86_64 kernels. It is used to rule out both SMP differences as well as 64-bit architecture differences.

Fedora Core 6 (x86_64)

Fedora Core 6 is the most recent full release Fedora distribution. This distribution sports a 2.6.20-1.2933.fc6 kernel with the latest patches. This is the x86_64 distribution with recent updates.

Figure 28: FC6 on Daisy Performance
Image perftest_smp_perf

Figure 29: FC6 on Daisy Delay
Image perftest_smp_delay

Figure 30: FC6 on Daisy Throughput
Image perftest_smp_thrput

Figure 31: FC6 on Daisy Comparison
Image perftest_smp_comp

Performance.

Figure 28 illustrates the performance of LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be see from Figure 28, the performance of LiS is dismal across the entire range of write sizes. The performance of Linux Fast-STREAMS STREAMS-based pipes, on the other hand, is superior across the entire range of write sizes. The performance of Linux Fast-STREAMS is almost an order of magnitude greater than that of LiS.

Delay.

Figure 29 illustrates the average write delay for LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. Again the slope appears to be the same for all implementations, except Linux legacy pipes which exhibit some anomalies below 1024 byte write sizes. The intercept for Linux Fast-STREAMS is again much superior to the other two implementations.

Throughput.

Figure 30 illustrates the throughput experienced by LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be seen from Figure 30, all implementations exhibit strong power function characteristics, indicating structure and robustness for each implementation.

Improvement.

Figure 31 illustrates the improvement over Linux legacy pipes of Linux Fast-STREAMS STREAMS-based pipes. The improvement of Linux Fast-STREAMS over Linux legacy pipes is significant: improvements range from a 100% increase in performance at large write sizes, to a 175% increase in performance at lower write sizes. LiS again drags in at -75%.

CentOS 5 (x86_64)

CentOS 5 is the most recent full release CentOS distribution. This distribution sports a 2.6.18-8-el5 kernel with the latest patches. This is the x86_64 distribution with recent updates.

Figure 32: CentOS 5 on Daisy Performance
Image perftest_cos5_perf

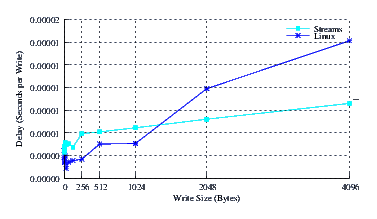

Figure 33: CentOS 5 on Daisy Delay
Image perftest_cos5_delay

Figure 34: CentOS 5 on Daisy Throughput
Image perftest_cos5_thrput

Figure 35: CentOS 5 on Daisy Comparison
Image perftest_cos5_comp

Performance.

Figure 32 illustrates the performance of LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be see from Figure 32, the performance of LiS is dismal across the entire range of write sizes. The performance of Linux Fast-STREAMS STREAMS-based pipes, on the other hand, is superior across the entire range of write sizes. The performance of Linux Fast-STREAMS is almost an order of magnitude greater than that of LiS.

Delay.

Figure 33 illustrates the average write delay for LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. Again the slope appears to be the same for all implementations, except Linux legacy pipes which exhibit some anomalies below 1024 byte write sizes. The intercept for Linux Fast-STREAMS is again much superior to the other two implementations.

Throughput.

Figure 34 illustrates the throughput experienced by LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be seen from Figure 34, all implementations exhibit strong power function characteristics, indicating structure and robustness for each implementation.

Improvement.

Figure 35 illustrates the improvement over Linux legacy pipes of Linux Fast-STREAMS STREAMS-based pipes. The improvement of Linux Fast-STREAMS over Linux legacy pipes is significant: improvements range from a 100% increase in performance at large write sizes, to a 175% increase in performance at lower write sizes. LiS again drags in at -75%.

CentOS 5.2 (x86_64)

CentOS 5.2 is the most recent full release CentOS distribution. This distribute sports a 2.6.18-92.1.6.el5.centos.plus kernel with the latest patches. This is the x86_64 distribution with recent updates.

This is a test result set that was updated July 26, 2008. The additional options, -H, -M, -F and -w were added to the perftest_script command line. Also, streams-0.9.2.4 was tested.

Figure 36: CentOS 5.2 on Daisy Performance
Image perftest_cos52_perf

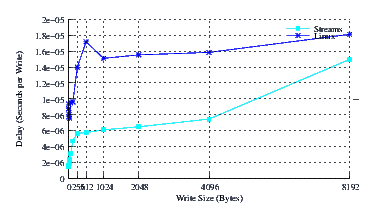

Figure 37: CentOS 5.2 on Daisy Delay
Image perftest_cos52_delay

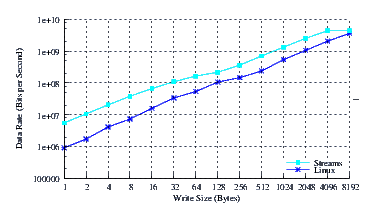

Figure 38: CentOS 5.2 on Daisy Throughput
Image perftest_cos52_thrput

Figure 39: CentOS 5.2 on Daisy Comparison
Image perftest_cos52_comp

Performance.

Figure 36 illustrates the performance of Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be see from Figure 36, the performance of Linux Fast-STREAMS STREAMS-based pipes is superior across the entire range of write sizes. The performance of Linux Fast-STREAMS is significantly greater (by a factor of 4 through 7) than Linux legacy pipes at smaller write sizes.

The performance boost experienced by Linux Fast-STREAMS at write sizes beneath 128 is primariliy due to the write coallescing feature (hold feature) of the Stream head combined with the fact that the fast-buffer sizes for x86_64 is 128 bytes. The performance boost experienced across the entire range is primarily due to the read-fill option combined with full-sized reads.

Note that it was not possible to get LiS running on this kernel.

Delay.

Figure 37 illustrates the average write delay for Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. Again the slope appears to be similar for both implementations if a little bit erratic. The intercept for Linux Fast-STREAMS is again much superior than Linux legacy pipes.

Again, the delay drop experienced by Linux Fast-STREAMS at write sizes beneath 128 is primariliy due to the write coallescing feature (hold feature) of the Stream head combined with the fact that the fast-buffer sizes for x86_64 is 128 bytes. The delay drop experienced across the entire range is primarily due to the read-fill option combined with full-sized reads.

Note that it was not possible to get LiS running on this kernel.

Throughput.

Figure 38 illustrates the throughput experienced by Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be seen from Figure 38, all implementations exhibit strong power function characteristics, indicating structure and robustness for each implementation.

Again, the throughput increase experienced by Linux Fast-STREAMS at write sizes beneath 128 is primariliy due to the write coallescing feature (hold feature) of the Stream head combined with the fact that the fast-buffer sizes for x86_64 is 128 bytes. The throughput increase experienced across the entire range is primarily due to the read-fill option combined with full-sized reads.

Note that it was not possible to get LiS running on this kernel.

Improvement.

Figure 39 illustrates the improvement over Linux legacy pipes of Linux Fast-STREAMS STREAMS-based pipes. The improvement of Linux Fast-STREAMS over Linux legacy pipes is significant: improvements range from a 100% increase in performance at large write sizes, to a staggering 500% increase in performance at lower write sizes.

Again, the improvements experienced by Linux Fast-STREAMS at write sizes beneath 128 is primariliy due to the write coallescing feature (hold feature) of the Stream head combined with the fact that the fast-buffer sizes for x86_64 is 128 bytes. The improvements experienced across the entire range is primarily due to the read-fill option combined with full-sized reads.

Note that it was not possible to get LiS running on this kernel.

Mspiggy

Mspiggy is a 1.7Ghz Pentium IV (M-processor) uniprocessor notebook (Toshiba Satellite 5100) with 1Gb of memory. Linux distributions tested on this machine are as follows:

Distribution Kernel
SuSE 10.0 OSS 2.6.13-15-default


Note that this is the same distribution that was also tested on Porky. The purpose of testing on this notebook is to rule out the differences between machine architectures on the test results. Tests performed on this machine are control tests.

SuSE 10.0 OSS

SuSE 10.0 OSS is the public release version of the SuSE/Novell distribution. There have been two releases subsequent to this one: the 10.1 and recent 10.2 releases. The SuSE 10 release sports a 2.6.13 kernel and the 2.6.13-15-default kernel was the tested kernel.

Figure 40: SuSE 10.0 OSS on Mspiggy Performance
Image perftest_nb_perf

Figure 41: SuSE 10.0 OSS on Mspiggy Delay
Image perftest_nb_delay

Figure 42: SuSE 10.0 OSS on Mspiggy Throughput
Image perftest_nb_thrput

Figure 43: SuSE 10.0 OSS on Mspiggy Comparison
Image perftest_nb_comp

Performance.

Figure 40 illustrates the performance of LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be see from Figure 40, the performance of LiS is dismal across the entire range of write sizes. The performance of Linux Fast-STREAMS STREAMS-based pipes, on the other hand, is superior across the entire range of write sizes. Linux Fast-STREAMS again performs a full order of magnitude better than LiS.

Delay.

Figure 41 illustrates the average write delay for LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. The slope of the delay curves is, again, similar, but the intercept for Linux Fast-STREAMS is far superior.

Throughput.

Figure 42 illustrates the throughput experienced by LiS, Linux Fast-STREAMS and Linux legacy pipes across a range of write sizes. As can be seen from Figure 42, all implementations exhibit strong power function characteristics, indicating structure and robustness for each implementation. Linux Fast-STREAMS again begins to saturate the memory bus at 10Gbps.

Improvement.

Figure 43 illustrates the improvement over Linux legacy pipes of Linux Fast-STREAMS STREAMS-based pipes. The improvement of Linux Fast-STREAMS over Linux legacy pipes is significant: improvements range from a 100% increase in performance at large write sizes, to a staggering 400% increase in performance at lower write sizes.

Analysis

The results across the various distributions and machines tested are consistent enough to draw some conclusions from the test results.

Discussion

The test results reveal that the maximum throughput performance, as tested by the perftest program, of STREAMS-based pipes (as implemented by Linux Fast-STREAMS) is remarkably superior to that of legacy Linux pipes, regardless of write or read sizes. In fact, STREAMS-based pipe performance at smaller write/read sizes is significantly greater (as much as 200-400%) than that of legacy pipes. The performance of LiS is dismal (approx. 75% decrease) compared to legacy Linux pipes.

Looking at only the legacy Linux and Linux Fast-STREAMS implementations, the difference can be described by analyzing the implementations.

Write side processing.

Linux legacy pipes use a simple method on the write side of the pipe. The pipe copies bytes from the user into a preallocated page, by pushing a tail pointer. If there is a sleeping reader process, the process is awoken. If there is no more room in the buffer, the write process sleeps or fails.

STREAMS, on the other hand, uses full flow control. On the write side of the STREAMS-based pipe, the Stream head allocates a message block and copies the bytes from the user to the message block and places the message block onto the Stream. This results in placing the message on the opposite Stream head. If a reader is sleeping on the opposite Stream head, the Stream head's read queue service procedure is scheduled. If the Stream is flow controlled, the writing process sleeps or fails.

STREAMS has the feature that when a reader finds insufficient bytes available to satisfy the read, it issues an M_READ message downstream requesting a specific number of bytes. When the writing Stream head receives this message, it attempts to satisfy the full read request before sending data downstream.

Linux Fast-STREAMS also has the feature that when flow control is exerted, it saves the message buffer and a subsequent write of the same size is added to the same buffer.

Read side processing.

On the read side of the legacy pipe, bytes are copied from the preallocated page buffer to the user, pulling a head pointer. If there are no bytes available to be read in the buffer, the reading process sleeps or fails. When bytes have been read from the buffer and a process is sleeping waiting to write, the sleeping process is awoken.

STREAMS again uses full flow control. On the read side of the STREAMS-based pipe, messages are removed from the Stream head read queue, copied to the user, and then the message is either freed (when all the bytes contained are consumed) or placed back on the Stream head read queue. If the read queue was previously full and falls beneath the low water mark for the read queue, the Stream is back-enabled. Back-enabling results in the service procedure of the write side queue of the other Stream head to be scheduled for service. If there are no bytes available to be read, the reading process sleeps or fails.

STREAMS has the additional feature that if there are no bytes to be read, it can issue an M_READ message downstream requesting the number of bytes that were issued to the read(2) system call.

Buffering.

There are two primary differences in the buffering approaches used by legacy and STREAMS-based pipes:

  1. Legacy pipes use preallocated pinned kernel pages to store data using a simply head and tail pointer approach.

  2. STREAMS-based pipes use full flow control with STREAMS message blocks and message queues.

One would expect that the STREAMS-based approach would present significant overheads in comparison to the legacy approach; however, the lack of flow control in the Linux approach is problematic.

Scheduling.

Legacy pipes schedule by waking a reading process whenever data is available in the buffer to be read, and waking a writing process whenever there is room available in the buffer to write. While accomplishing buffering, this does not provide flow control or scheduling. By not providing even the hysteresis afforded by Sockets, the write and read side thrash the scheduler as bytes are written to and removed from the pipe.

STREAMS-based pipes, on the other hand, use the scheduling mechanisms of STREAMS. When messages are written to the reading Stream head and a reader is sleeping, the service procedure for the reading Stream head's read queue is scheduled for later execution. When the STREAMS scheduler later runs, the reading process is awoken. When message are read from the reading Stream head read queue and the queue was previously flow controlled, and the byte count falls below the low water mark defined for the queue, the writing Stream head write queue service procedure is scheduled. Once the STREAMS scheduler later runs, the writing process is awoken.

Linux Fast-STREAMS is designed to run tasks queued to the STREAMS scheduler on the same processor as the queueing process or task. This avoids unnecessary context switches.

The STREAMS-based pipe approach results in fewer wakeup events being generated. Because there are fewer wakeup events, there are fewer context switches. The reading process is permitted to consume more messages before the writing process is awoken; and the writing process is permitted to write more messages before the reading process is awoken.

Result.

The result of the differences between the legacy and the STREAMS based approach is that fewer context switches result: writing processes are allowed to write more messages before a blocked reader is awoken and the reading process is allowed to read more messages before a blocked writer is awoken. This results in greater code path and data cache efficiency and significantly less scheduler thrashing between the reading and writing process.

The increased performance of the STREAMS-based pipes can be explained as follows:

  • The STREAMS message coalescing features allows the complexity of the write side process to approach that of the legacy approach. This feature provides a boost to performance at message sizes smaller than a FASTBUF. The size of a FASTBUF on 32-bit systems is 64 bytes; on 64-bit systems, 128 bytes. (However, this STREAMS feature is not sufficient to explain the dramatic performance gains, as close to the same performance is exhibited with the feature disabled.)

  • The STREAMS read notification feature allows the write side to exploit efficiencies from the knowledge of the amount of data that was requested by the read side. (However, this STREAMS feature is also not sufficient to explain the performance gains, as close to the same performance is exhibited with the feature disabled.)

  • The STREAMS read fill mode feature permits the read side to block until the full read request is satisfied, regardless of the O_NONBLOCK flags setting associated with the read side of the pipe. (Again, this STREAMS feature is not sufficient to explain the performance gains, as close to the same performance is exhibited with the feature disabled.)

  • The STREAMS flow control and scheduling mechanisms permits the read side to read more messages between wakeup events; and also permits the write side to write more messages between wakeup events. This results in superior code and data caching efficiencies and a greatly reduced number of context switches. This is the only difference that explains the full performance increase in STREAMS-based pipes over legacy pipes.

Conclusions

These experiments have shown that the Linux Fast-STREAMS implementation of STREAMS-based pipes outperforms the legacy Linux pipe implementation by a significant amount (up to a factor of 5) and outperform the LiS implementation by a staggering amount (up to a factor of 25).

The Linux Fast-STREAMS implementation of STREAMS-based pipes is superior by a significant factor across all systems and kernels tested.

While it can be said that all of the preconceptions regarding STREAMS and STREAMS-based pipes are applicable to the under-performing LiS, and may very well be applicable to historical implementations of STREAMS, these preconceptions with regard to STREAMS and STREAMS-based pipes are dispelled for the high-performance Linux Fast-STREAMS by these test results.

  • STREAMS is fast.

    Contrary to the preconception that STREAMS must be slower because it is more complex, in fact the reverse has been shown to be true for Linux Fast-STREAMS in these experiments. The STREAMS flow control and scheduling mechanisms serve to adapt well and increase both code and data cache as well as scheduler efficiency.

  • STREAMS is more flexible and more efficient.

    Contrary to the preconception that STREAMS trades flexibility for efficiency (that is, that STREAMS is somehow less efficient because it is more flexible), in fact has shown to be untrue for Linux Fast-STREAMS, which is both more flexible and more efficient. Indeed, the performance gains achieved by STREAMS appear to derive from its more sophisticated queueing, scheduling and flow control model. (Note that this is in fitting with the statements made about 4.2BSD pipes being implemented with UNIX domain sockets for "performance reasons" (MBKQ97).)

  • Linux Fast-STREAMS is superior at exploiting parallelisms on SMP.

    Contrary to the preconception that STREAMS must be slower due to complex locking and synchronization mechanisms, Linux Fast-STREAMS performed as well on SMP (hyperthreaded) machines as on UP machines and strongly outperformed legacy Linux pipes with 100% improvements at all write sizes and a staggering 500% at smaller write sizes.

  • STREAMS-based pipes are fast.

    Contrary to the preconception that STREAMS-based pipes must be slower because STREAMS-based pipes provide such a rich set of features as well as providing full duplex operation where legacy pipes only unidirectional operation, the reverse has been shown in these experiments for Linux Fast-STREAMS. By utilizing STREAMS flow control and scheduling, STREAMS-based pipes indeed perform better than legacy pipes.

  • STREAMS-based pipes are neither unnecessarily complex nor cumbersome.

    Contrary to the preconception that STREAMS-based pipes must be poorer due to their increased implementation complexity, the reverse has shown to be true in these experiments for Linux Fast-STREAMS. Also, the fact that legacy, STREAMS and 4.2BSD pipes conform to the same standard (POSIX), means that they are no more cumbersome from a programming perspective. Indeed a POSIX conforming application will not know the difference between the implementation (with the exception that superior performance will be experienced on STREAMS-based pipes).

  • LiS performs poorly.

    Despite claiming to be an adequate implementation of SVR4 STREAMS, LiS performance is dismal enough to make it unusable. Due to conformance and implementation errors, LiS was already deprecated by Linux Fast-STREAMS, and these tests exemplify why a replacement for LiS was necessary and why support for LiS was abandoned by the OpenSS7 Project (SS7). LiS pipe performance tested about half that of legacy Linux pipes and a full order of magnitude slower than Linux Fast-STREAMS.

Future Work

There are two future work items that immediately come to mind:

  1. It is fairly straightforward to replace the pipe implementation of an application that uses shared libraries from underneath it using preloaded libraries. The Linux Fast-STREAMS libstreams.so library can be preloaded, replacing the pipe(2) library call with the STREAMS-based pipe equivalent. A suitable application that uses pipes extensively could be benchmarked both on legacy Linux pipes and STREAMS-based pipes to determine the efficiencies achieved over a less narrowly defined workload.

  2. Because STREAMS-based pipes exhibit superior performance in these respects, it can be expected that STREAMS pseudo-terminals will also exhibit superior performance over the legacy Linux pseudo-terminal implementation. STREAMS pseudo-terminals utilize the STREAMS mechanisms for flow control and scheduling, whereas the Linux pseudo-terminal implementation uses the over-simplified approach taken by legacy pipes.

Related Work

A separate paper comparing a TPI STREAMS implementation of UDP with the Linux BSD Sockets implementation has also been prepared. That paper also shows significant performance improvements for STREAMS attributable to the similar causes.

Bibliography

GC94
Berny Goodheart and James Cox.
The magic garden explained: the internals of UNIX System V Release 4, an open systems design / Berny Goodheart & James Cox.
Prentice Hall, Australia, 1994.
ISBN 0-13-098138-9.

LfS
Linux Fast-STREAMS - A High-Performance SVR 4.2 MP STREAMS Implementation for Linux.
http://www.openss7.org/download.html.

LiS
Linux STREAMS (LiS).
http://www.openss7.org/download.html.

LML
Linux Kernel Mailing List - Frequently Asked Questions.
http://www.kernel.org/pub/linux/docs/lkml/#s9-9.

MBKQ97
Marshall Kirk McKusick, Keith Bostic, Michael J. Karels, and John S. Quaterman.
The design and implementation of the 4.4BSD operating system.
Addison-Wesley, third edition, November 1997.
ISBN 0-201-54979-4.

Rit84
Dennis M. Ritchie.
A Stream Input-output System.
AT&T Bell Laboratories Technical Journal, 63(8):1897-1910, October 1984.
Part 2.

SS7
The OpenSS7 Project.
http://www.openss7.org/.

Ste97
W. Richard Stevens.
Advanced Programming in the UNIX Environment.
Addison-Wesley, Reading, Massachusetts, fifteenth edition, December 1997.
ISBN 0-201-56317-7.


Performance Testing Script

A performance testing script (perftest_sctipt) was used to obtain repeatable results. The script was executed as:

$#> ./perftest_script -a -S10 --hiwat=$((1<<16)) --lowat=$((1<<13))

The script is as follows:

#!/bin/bash
set -x
interval=5
testtime=2
command=`echo $0 | sed -e 's,.*/,,'`
perftestn=
perftest=
if [ -x `pwd`/perftest ] ; then
  perftest=`pwd`/perftest
elif [ -x /usr/lib/streams/perftest ] ; then
  perftest=/usr/lib/streams/perftest
elif [ -x /usr/libexec/streams/perftest ] ; then
  perftest=/usr/libexec/streams/perftest
elif [ -x /usr/lib/LiS/perftest ] ; then
  perftest=/usr/lib/LiS/perftest
elif [ -x /usr/libexec/LiS/perftest ] ; then
  perftest=/usr/libexec/LiS/perftest
fi
if [ -x `pwd`/perftestn ] ; then
  perftestn=`pwd`/perftestn
elif [ -x /usr/lib/streams/perftestn ] ; then
  perftestn=/usr/lib/streams/perftestn
elif [ -x /usr/libexec/streams/perftestn ] ; then
  perftestn=/usr/libexec/streams/perftestn
elif [ -x /usr/lib/LiS/perftestn ] ; then
  perftestn=/usr/lib/LiS/perftestn
elif [ -x /usr/libexec/LiS/perftestn ] ; then
  perftestn=/usr/libexec/LiS/perftestn
fi
[ -n "$perftestn" ] || [ -n "$perftest" ] || exit 1
scls=
if [ -x `pwd`/scls ] ; then
        scls=`pwd`/scls
elif [ -x /usr/sbin/scls ] ; then
        scls=/usr/sbin/scls
fi
(
  set -x
  [ -n "$scls" ] && $scls -a -c -r pipe pipemod
  for size in 4096 2048 1024 512 256 128 64 32 16 8 4 2 1
  do
    [ -n "$perftest"  ] && $perftest  -q \
      -r -t $testtime -i $interval -m nullmod -p 0 -s $size ${1+$@}
    [ -n "$perftestn" ] && $perftestn -q \
      -r -t $testtime -i $interval -m nullmod -p 0 -s $size ${1+$@}
    [ -n "$scls"      ] && $scls -a -c -r pipe pipemod srvmod nullmod
  done
) 2>&1 | tee `hostname`.$command.`date -uIseconds`.log


Raw Data

Following are the raw data points captured using the perftest_script benchmarking script:

Table 1 lists the raw data from the perftest program that was used in preparing graphs for FC6 (i386) on Porky.

Table 2 lists the raw data from the perftest program that was used in preparing graphs for CentOS 4 on Porky.

Table 3 lists the raw data from the perftest program that was used in preparing graphs for SuSE OSS 10 on Porky.

Table 4 lists the raw data from the perftest program that was used in preparing graphs for Ubuntu 6.10 on Porky.

Table 5 lists the raw data from the perftest program that was used in preparing graphs for RedHat 7.2 on Pumbah.

Table 6 lists the raw data from perftest, used in preparing graphs for Fedora Core 6 (x86_64) HT on Daisy.

Table 7 lists the raw data from perftest, used in preparing graphs for CentOS 5 (x86_64) HT on Daisy.

Table 8 lists the raw data from perftest, used in preparing graphs for CentOS 5.2 (x86_64) HT on Daisy.

Table 9 lists the raw data from perftest, used in preparing graphs for SuSE 10.0 OSS on Mspiggy.


Table 1: Raw data for Fedora Core 6 on Porky
Size LiS STREAMS Linux
1 37188 344307 116966
2 37284 351804 117820
4 37179 347164 116381
8 37030 338055 117887
16 37225 329919 117822
32 36999 317133 116595
64 36809 302554 116686
128 35127 283041 117284
256 34828 271630 114657
512 34807 263021 114821
1024 34607 247080 111825
2048 34204 214279 106369
4096 33139 176842 100510



Table 2: Raw data for CentOS 4.0 on Porky
Size LiS STREAMS Linux
1 53119 479434 132195
2 53066 505597 132293
4 53289 501230 131201
8 53216 475951 132182
16 53254 464013 131688
32 52952 438519 131697
64 52499 407751 129409
128 50065 379356 130188
256 49348 372393 126861
512 49297 360773 125318
1024 48598 336727 123318
2048 48274 290614 117809
4096 47004 227778 110875



Table 3: Raw data for SuSE 10.0 OSS on Porky
Size LiS STREAMS Linux
1 53119 961820 168049
2 53066 933673 176267
4 53289 942865 172912
8 53216 837034 168898
16 53254 827399 166427
32 52952 740263 172185
64 52499 659878 169231
128 50065 582512 174005
256 49348 580011 166646
512 49297 547149 167829
1024 48598 512452 152447
2048 48274 413858 154813
4096 47004 307174 138756



Table 4: Raw data for Ubuntu 6.10 on Porky
Size LiS STREAMS Linux
1 53119 430184 144855
2 53066 433274 143835
4 53289 425094 145879
8 53216 407647 143399
16 53254 394244 141268
32 52952 372063 144056
64 52499 354598 139854
128 50065 339602 141793
256 49348 324405 140269
512 49297 311610 134445
1024 48598 292892 136385
2048 48274 255374 127651
4096 47004 202755 116218



Table 5: Raw data for RedHat 7.2 on Pumbah
Size LiS STREAMS Linux
1 53160 497439 209223
2 53440 499519 199566
4 53252 496272 187440
8 53097 489615 188829
16 53179 485036 182148
32 52926 469102 185174
64 53535 457550 182383
128 49452 416632 178087
256 49584 396356 177204
512 49169 381209 165517
1024 48992 355111 173222
2048 47970 303334 163572
4096 46598 240386 136522



Table 6: Raw data for Fedora Core 6 on Daisy
Size LiS STREAMS Linux
1 37188 334896 146553
2 37284 334796 122048
4 37179 329476 140025
8 37030 341612 160396
16 37225 333520 125678
32 36999 325169 125124
64 36809 302603 109340
128 35127 278490 128133
256 34828 247379 122689
512 34807 235190 104739
1024 34607 215718 83447
2048 34204 187982 81301
4096 33139 150392 77118



Table 7: Raw data for CentOS 5 on Daisy
Size STREAMS Linux
1 232029 262762
2 221413 224493
4 217800 294765
8 206325 284109
16 194132 252365
32 200675 347247
64 198463 290958
128 210551 280954
256 168482 270703
512 164051 198930
1024 154924 197374
2048 138744 101038
4096 116291 70827



Table 8: Raw data for CentOS 5.2 on Daisy
Size STREAMS Linux
1 693675 133714
2 677583 192987
4 652141 137415
8 617148 153168
16 544888 127430
32 430115 193361
64 322424 118036
128 221081 143728
256 187469 110754
512 185642 102351
1024 174350 103238
2048 155567 106183
4096 130076 77321
8192 68071 62987



Table 9: Raw data for SuSE 10.0 OSS on Mspiggy
Size LiS STREAMS Linux
1 690896 114253
2 662870 107000
4 639931 128916
8 596668 114321
16 520846 124913
32 427005 132284
64 321028 105085
128 212760 103989
256 177236 71573
512 173048 58217
1024 163703 66249
2048 154194 64369
4096 134026 63115
8192 66860 55217




Footnotes

... Bidulock1
bidulock@openss7.org
... 20082
Original edition June 16, 2007
... FIFOs3
For example, AIX.
... input-output4
For example, HP-UX.
... domain.5
It has been said of Linux that, without STREAMS, it is just another BSD... ...and not a very good one.
... pipes.6
This compatibility is exemplified by the perftest(8) program which does not distinguish between legacy and STREAMS-based pipes in their implementation or use.


Brian F. G. Bidulock 2014-10-26
Last modified: Mon, 25 Jun 2007 12:25:10 GMT
Copyright © 2014 OpenSS7 Corporation All Rights Reserved.
